Xiaomi Electric Scooter 5 Max
Product specifications
Product name; Xiaomi Electric Scooter 5 Max
Max. speed; 25km/h (Maximum speed for each mode: Walking mode: 6km/h; Standard mode: 20km/h; Sport mode: 25km/h)
Travel range; 60km
Product weight; 22.3kg
Max. incline; 22%
Braking; Drum brakes and E-ABS
Rated motor power; 400W
Max. motor power; 1000W
Tires; 10" tubeless tires
Max. load; 120kg
Rider height; 120–200cm
Rider age; 16–50 years old
Working temperature; -10℃–40℃
Storage temperature; -20℃–45℃
IP rating; PX5
Charging time; Approx. 9 hours
Direction indicator
Battery specifications
Battery model; T2336-BD4A
Rated capacity; 10.2Ah/477Wh
Charging temperature; 0℃–40℃
Adapter specifications
Max. output power; 70W
Input current; 2A Max
Output current; 1.3A
Input voltage; 100-240VAC
Max. output voltage; 54.6VDC
Package contents
Xiaomi Electric Scooter 5 Max ×1
Power adapter ×1
T-share Allen Wrench ×1
Screws ×5
User manual
Important information
Specifications
*Notes
*60km range: Tested when fully charged with a load of 75±5kg on a flat road, riding at a uniform speed of 15km/h with an ambient temperature of (25±5)°C and a wind speed of ≤3m/s until the vehicle could no longer be ridden. Data tested by Beijing TIRT Technology Service Co.,Ltd. Report number: OTA1-202403478.
*1000W is maximum power. When running at a maximum voltage of 54.6Vdc and to the maximum cut-off current, a power meter was used to test the motor input power. Compliance requirement: 1000W±50W. Data tested by Beijing TIRT Technology Service Co.,Ltd. Report number: OTA1-202403478.
*22% incline capability: With a load of 75±5kg and with 70%±10% power, the scooter started from the bottom of a slope and climbed 10m at 15km/h. It was able to run stably on the slope without stalling or power failure and with an exit speed greater than 6km/h. Data tested by Beijing TIRT Technology Service Co.,Ltd. Report number: OTA1-202403478.

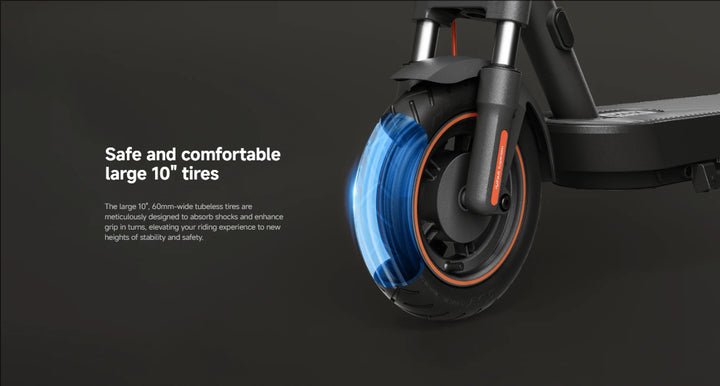

*60mm-wide tread: A vernier calliper was used to measure the tire width. If the test data was not less than the design value, it was considered to meet the requirements. The tire width of Xiaomi Electric Scooter 5 Max is 60mm. Data comes from manufacturer.
*477Wh battery capacity: To calculate the actual capacity of the battery pack, it was first charged fully according to the standard charging mode in the specification and left to stand for 1 hour before being discharged at room temperature (25±5)℃ and at a current of 0.5C to the specified termination voltage or the battery pack protection value. The battery pack was charged and discharged in this way twice and the maximum discharge capacity was used as the measured capacity. The test battery capacity is 477Wh. Data comes from manufacturer.
*Rapid charges in 3 hours: The test sample battery was discharged until the battery undervoltage protection engaged (or ridden until the battery was zero) and then left in a normal temperature and pressure environment for more than 2 hours. The corresponding fast-charging charger was then used to charge the sample and the total charging time was recorded as the time when the charger indicator changed colour. The rapid charging time of Xiaomi Electric Scooter 5 Max is 3h8min.
*Standard charges in 9 hours: The test sample battery was discharged until the battery undervoltage protection engaged (or ridden until the battery was zero) and then left in a normal temperature and pressure environment for more than 2 hours. The corresponding standard charger was then used to charge the sample, and the total charging time was recorded as the time when the charger indicator changed colour. The standard charging time of Xiaomi Electric Scooter 5 Max is 8h46min.
*25km/h maximum speed: Carrying a load of 75±5kg, with 70%±10% power, at an ambient temperature of 25±5℃, and a wind speed of ≤3m/s, the scooter accelerated in the auxiliary driving area and maintained maximum speed upon reaching the test area. The maximum speed in the test area was measured with a speedometer. Maximum speed: 25km/h±10%. Data tested by Beijing TIRT Technology Service Co.,Ltd. Report number: OTA1-202403478.
*Walking mode: 6km/h. Standard mode: 20km/h. Sport mode: 25km/h. Carrying a load of 75±5kg, with 70%±10% power, at an ambient temperature of 25±5℃, and a wind speed of ≤3m/s, the scooter accelerated in the auxiliary driving area and maintained maximum speed upon reaching the test area. The maximum speed in the test area was measured with a speedometer or Bluetooth and the dashboard. Data comes from manufacturer.
*1.5mm frame thickness: Using a vernier calliper to measure the frame thickness. If the test data was not less than the design value, it was considered to meet the requirements. Data comes from manufacturer.
*120kg dynamic load: The scooter was tested on actual roads for 3,000km by a tester weighing 120kg. Inspection requirements and standards: The whole vehicle has no functional damage and the structural and plastic parts have no abnormalities such as cracks and fractures. Data comes from manufacturer.
*IPX5: The whole vehicle riser of a sample was tested for water resistance in both upright and folded states. The outer shell protection met IPX5 requirements and there was no obvious water ingress into the electrical components. Data tested by Beijing TIRT Technology Service Co.,Ltd. Report number: OTA1-202403478.
*Ambient light needs to be turned on manually or to automatic mode via Xiaomi Home app. German standard products do not have ambient light due to regulations.
